flatland_server::Joint Class Reference

#include <joint.h>

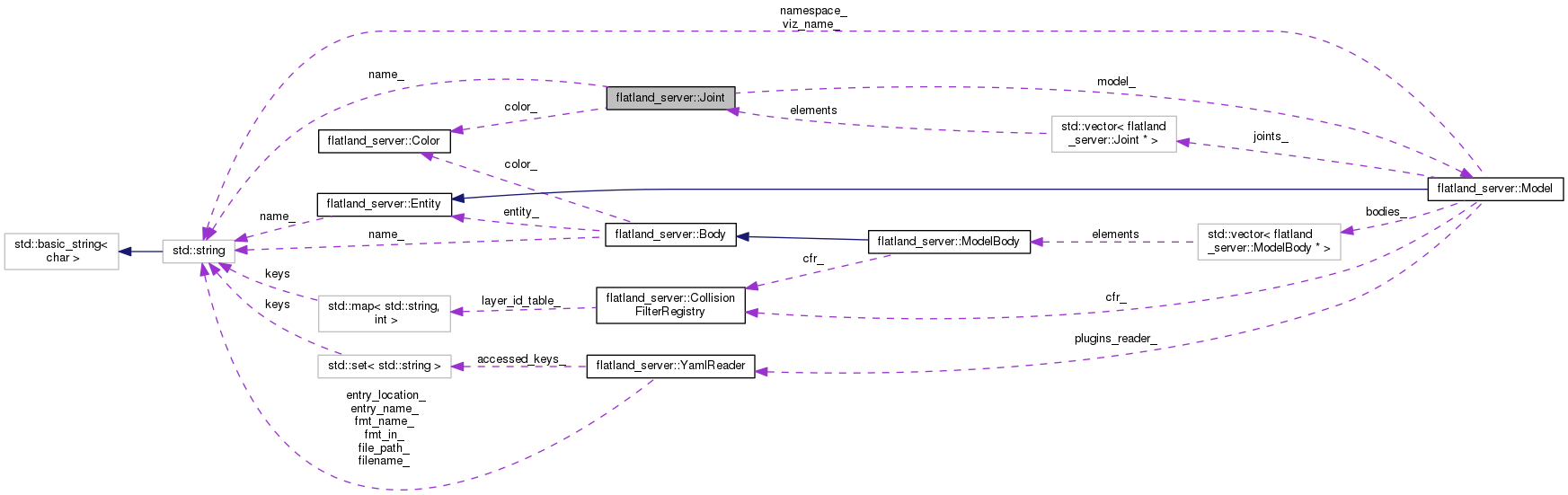

Collaboration diagram for flatland_server::Joint:

Public Member Functions
	Joint (b2World *physics_world, Model *model, const std::string &name, const Color &color, const b2JointDef &joint_def)
	Constructor for the joint. More...
	Joint (const Joint &)=delete
	Disallow copying of joints, problematic for constructors and destructors.
Joint &	operator= (const Joint &)=delete
void	DebugOutput () const
	logs the debugging information for the joint
Model *	GetModel ()
const std::string &	GetName () const
const Color &	GetColor () const
void	SetColor (const Color &color)
b2Joint *	GetPhysicsJoint ()
b2World *	GetphysicsWorld ()

Static Public Member Functions
static Joint *	MakeJoint (b2World *physics_world, Model *model, YamlReader &joint_reader)
	Creates a joint for the given params, throws exceptions upon failure. More...
static Joint *	MakeRevoluteJoint (b2World *physics_world, Model *model, YamlReader &joint_reader, const std::string &name, const Color &color, b2Body *body_A, b2Vec2 anchor_A, b2Body *body_B, b2Vec2 anchor_B, bool collide_connected)
	Creates a revolute joint for the given params, throws exceptions upon failure. More...
static Joint *	MakeWeldJoint (b2World *physics_world, Model *model, YamlReader &joint_reader, const std::string &name, const Color &color, b2Body *body_A, b2Vec2 anchor_A, b2Body *body_B, b2Vec2 anchor_B, bool collide_connected)
	Creates a weld joint for the given params, throws exceptions upon failure. More...

Public Attributes
Model *	model_
	Model the joint belongs to.
std::string	name_
	Name of the joint.
b2World *	physics_world_
	Box2D physics world.
Color	color_
	Color for visualization.
b2Joint *	physics_joint_
	Box2D physics joint.

Detailed Description

This class defines a joint in the simulation world. It wraps around the Box2D physics joints providing extra data and useful methods

Constructor & Destructor Documentation

flatland_server::Joint::Joint	(	b2World *	physics_world,
		Model *	model,
		const std::string &	name,
		const Color &	color,
		const b2JointDef &	joint_def
	)

Constructor for the joint.

Parameters

[in]	physics_world	Box2D physics world
[in]	model	Model the joint belongs to
[in]	name	Name of the joint
[in]	color	Color to visualize the joint
[in]	joint_def	Box2D joint definition

Member Function Documentation

const Color & flatland_server::Joint::GetColor

(

)

const

Returns

Color of the joint for visualization

Model * flatland_server::Joint::GetModel

(

)

Returns

Pointer to the model that contains the joint

const std::string & flatland_server::Joint::GetName

(

)

const

Returns

Name of the the joint

b2Joint * flatland_server::Joint::GetPhysicsJoint

(

)

Returns

Get pointer to the Box2D physics joint

b2World * flatland_server::Joint::GetphysicsWorld

(

)

Returns

Get pointer of the Box2D physics world

Joint * flatland_server::Joint::MakeJoint ( b2World *  physics_world, Model *  model, YamlReader &  joint_reader  )

static

Creates a joint for the given params, throws exceptions upon failure.

Parameters

[in]	physics_world	Box2D physics world
[in]	model	Model the joint belongs to
[in]	joint_reader	YAML reader for node that contains joint information

Returns

A new joint as defined by the input data

Joint * flatland_server::Joint::MakeRevoluteJoint ( b2World *  physics_world, Model *  model, YamlReader &  joint_reader, const std::string &  name, const Color &  color, b2Body *  body_A, b2Vec2  anchor_A, b2Body *  body_B, b2Vec2  anchor_B, bool  collide_connected  )

static

Creates a revolute joint for the given params, throws exceptions upon failure.

Parameters

[in]	physics_world	Box2D physics world
[in]	model	Model the joint belongs to
[in]	joint_reader	YAML reader for node that contains joint information
[in]	name	Name of the joint
[in]	color	Color to visualize the joint
[in]	body_A	pointer to the first body
[in]	anchor_B	anchor point on the first body
[in]	body_B	pointer to the second body
[in]	anchor_B	anchor point on the second body
[in]	collide_connected	Should two bodies connected by this joint collide

Returns

A new revolute joint as defined by the input data

Joint * flatland_server::Joint::MakeWeldJoint ( b2World *  physics_world, Model *  model, YamlReader &  joint_reader, const std::string &  name, const Color &  color, b2Body *  body_A, b2Vec2  anchor_A, b2Body *  body_B, b2Vec2  anchor_B, bool  collide_connected  )

static

Creates a weld joint for the given params, throws exceptions upon failure.

Parameters

[in]	physics_world	Box2D physics world
[in]	model	Model the joint belongs to
[in]	joint_reader	YAML reader for node that contains joint information
[in]	name	Name of the joint
[in]	color	Color to visualize the joint
[in]	body_A	pointer to the first body
[in]	anchor_B	anchor point on the first body
[in]	body_B	pointer to the second body
[in]	anchor_B	anchor point on the second body
[in]	collide_connected	Should two bodies connected by this joint collide

Returns

A new weld joint as defined by the input data

void flatland_server::Joint::SetColor

(

const Color &

color

)

Returns

Color of the joint for visualization

---

The documentation for this class was generated from the following files:

• flatland_server/include/flatland_server/joint.h
• flatland_server/src/joint.cpp
