#include <bumper.h>

Inheritance diagram for flatland_plugins::Bumper:

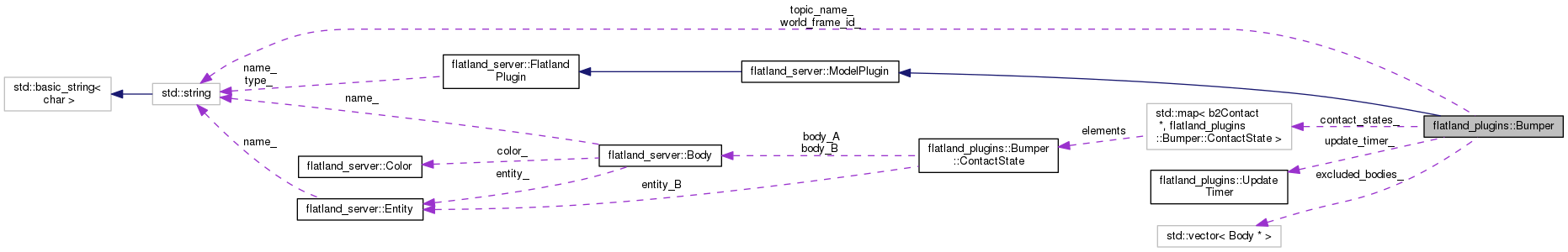

Collaboration diagram for flatland_plugins::Bumper:

[legend]

Classes
struct	ContactState

Public Member Functions
void	OnInitialize (const YAML::Node &config) override
	Initialization for the plugin. More...

void	BeforePhysicsStep (const Timekeeper &timekeeper) override
	Called when just before physics update. More...

void	AfterPhysicsStep (const Timekeeper &timekeeper) override
	Called when just after physics update. More...

void	BeginContact (b2Contact *contact) override
	A method that is called for all Box2D begin contacts. More...

void	EndContact (b2Contact *contact) override
	A method that is called for all Box2D end contacts. More...

void	PostSolve (b2Contact contact, const b2ContactImpulse impulse) override
	A method that is called for Box2D postsolve. More...

Public Member Functions inherited from flatland_server::ModelPlugin
Model *	GetModel ()
	Get model.

void	Initialize (const std::string &type, const std::string &name, Model *model, const YAML::Node &config)
	The method to initialize the ModelPlugin, required since Pluginlib require the class to have a default constructor. More...

bool	FilterContact (b2Contact contact, Entity &entity, b2Fixture &this_fixture, b2Fixture &other_fixture)
	Helper function check if this model is part of the contact, and extracts all the useful information. More...

bool	FilterContact (b2Contact *contact)
	Helper function check if this model is part of the contact. More...

Public Member Functions inherited from flatland_server::FlatlandPlugin
const PluginType	Type ()

const std::string &	GetName () const
	Get plugin name.

const std::string &	GetType () const
	Get type of plugin.

virtual void	PreSolve (b2Contact contact, const b2Manifold oldManifold)
	A method that is called for Box2D presolve. More...

virtual	~FlatlandPlugin ()=default
	Flatland plugin destructor.

Public Attributes
std::string	topic_name_

std::string	world_frame_id_
	name of the world frame id

std::vector< Body * >	excluded_bodies_

bool	publish_all_collisions_
	whether to publish all collisions, or strictly adhere to update rate

double	update_rate_
	rate to publish message at

UpdateTimer	update_timer_
	for managing update rate

std::map< b2Contact *, ContactState >	contact_states_
	For keeping track of contacts.

ros::Publisher	collisions_publisher_
	For publishing the collisions.

Public Attributes inherited from flatland_server::ModelPlugin
ros::NodeHandle	nh_
	ROS node handle.

Public Attributes inherited from flatland_server::FlatlandPlugin
std::string	type_
	type of the plugin

std::string	name_
	name of the plugin

ros::NodeHandle	nh_

PluginType	plugin_type_

Additional Inherited Members
Public Types inherited from flatland_server::FlatlandPlugin
enum	PluginType { Invalid, Model, World }

Protected Member Functions inherited from flatland_server::ModelPlugin
	ModelPlugin ()=default
	Model plugin default constructor.

Detailed Description

This class defines a bumper plugin that is used to publish the collisions states of bodies in the model

Member Function Documentation

void flatland_plugins::Bumper::AfterPhysicsStep ( const Timekeeper & timekeeper )

overridevirtual

Called when just after physics update.

Parameters

[in] timekeeper Object managing the simulation time

Reimplemented from flatland_server::FlatlandPlugin.

void flatland_plugins::Bumper::BeforePhysicsStep ( const Timekeeper & timekeeper )

overridevirtual

Called when just before physics update.

Parameters

[in] timekeeper Object managing the simulation time

Reimplemented from flatland_server::FlatlandPlugin.

void flatland_plugins::Bumper::BeginContact ( b2Contact * contact )

overridevirtual

A method that is called for all Box2D begin contacts.

Parameters

[in] contact Box2D contact

Reimplemented from flatland_server::FlatlandPlugin.

void flatland_plugins::Bumper::EndContact ( b2Contact * contact )

overridevirtual

A method that is called for all Box2D end contacts.

Parameters

[in] contact Box2D contact

Reimplemented from flatland_server::FlatlandPlugin.

void flatland_plugins::Bumper::OnInitialize ( const YAML::Node & config )

overridevirtual

Initialization for the plugin.

Parameters

[in] config Plugin YAML Node

Implements flatland_server::FlatlandPlugin.

void flatland_plugins::Bumper::PostSolve	(	b2Contact *	contact,
		const b2ContactImpulse *	impulse
	)

overridevirtual

A method that is called for Box2D postsolve.

Parameters

[in]	contact	Box2D contact
[in]	impulse	Impulse from the collision resolution

Reimplemented from flatland_server::FlatlandPlugin.

Member Data Documentation

std::vector<Body *> flatland_plugins::Bumper::excluded_bodies_

bodies to ignore

The documentation for this class was generated from the following files:

flatland_plugins/include/flatland_plugins/bumper.h
flatland_plugins/src/bumper.cpp
